Technical data
Fabric Properties
Weight
(g/m2)
380
Thickness (mm)
0.45
Width (cm)
177 / 267
Pattern
Solid
Fabric type
Soltis Horizon 86
Fabric material
Screens
Protection Type
Fire protection class
B1
Openness factor (%)
14
Protection Properties
Light Transmission Tv (%) - front
20
Light Transmission Tv (%) - back
20
Radiation Transmission Ts (%) - front
22
Radiation Transmission Ts (%) - back
22
Radiation Reflection Rs (%) - front
36
Radiation Reflection Rs (%) - back
36
Radiation Absorption As (%) - front
42
Radiation Absorption As (%) - back
42
Application
Window
Patio & Canopy
Details
Structure

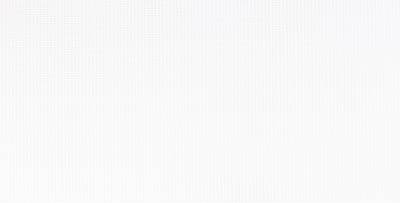

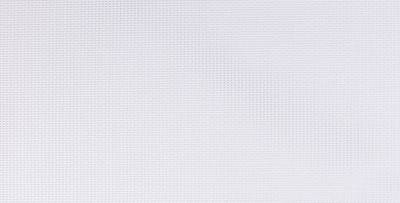

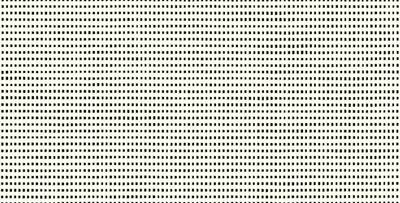

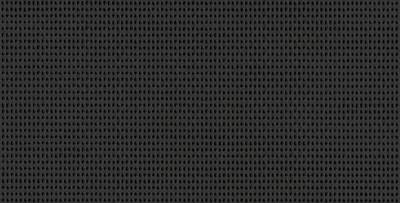

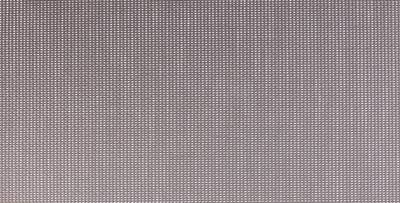

Pattern
Frame Colors
Thanks to the wide range of colors and surfaces, the frame colors can be harmoniously matched to the fabric and its surroundings. With 8 CLASSIC- and 16 LIFESTYLE colors as well as a variety of traditional RAINBOW colors, a wide range is available that leaves nothing to be desired. All profiles and frame parts are also powder-coated and offer effective weather protection.
